Overview

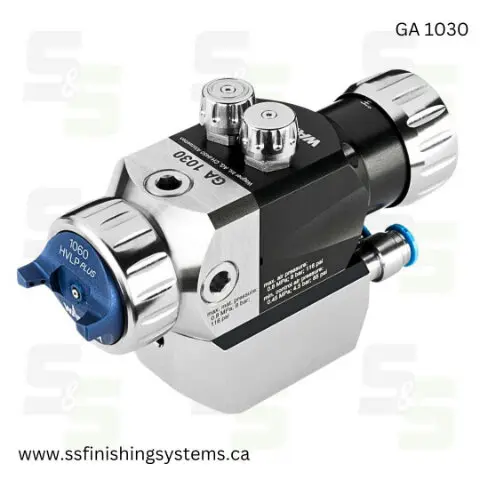

The TOPFINISH GA 1030 automatic airspray gun impresses with its excellent atomization properties and high-quality spray pattern. The universal device is particularly low-wear and enables process-reliable coating in continuous operation. For use with UV and highly abrasive materials, the gun is available as TOPFINISH GA 1020 with membrane seal.
| Flexible applications - The gun is suitable for coating workpieces made of wood, metal or plastic, where a high-quality appearance is important. It can be used for water- and solvent-based as well as UV- and highly abrasive materials. It can be individually configured for special requirements. Reliable - The universal device is particularly low-wear and enables process-safe coating in continuous operation. Precisely manufactured air caps and an optimized air flow enable perfect atomization. Excellent coating results - Savings in material consumption thanks to a transfer efficiency of up to 88%. Low maintenance - Optimized, particularly durable packing. Long maintenance intervals thanks to durable components. Fast replacement of wear and spare parts. |
|
| GA 1030 IC (Internal Control – Part No. 2420606) - Integrated Control: Internal regulation for precise spray adjustment. - Full Circulation: Base & gun circulation ensures consistent material flow. - Optimized for High-Precision Applications. GA 1030 EC (External Control – Part No. 2429129) - External Control: Requires external adjustments. - Base-Only Circulation: Suitable for simpler applications. - More Cost-Effective for Specific Use Cases. |
|
| - Weight: 650 g - Maximum Material Pressure: 8 bar - Sound Level: Up to 92.8 dB(A) - Material Temperature Range: 5°C to 80°C - Nozzle Sizes: Available from 0.3 mm to 3.5 mm |
|
| - Industrial Manufacturing – Automotive, aerospace, machinery - Wood & Furniture – Cabinetry, high-end furniture, musical instruments - Automotive & Transportation – Car interiors, railway, marine coatings - Electronics & Plastics – Consumer electronics, medical devices General Industry – Glass, ceramics, leather goods |
GA1030_EN_76944.pdf
