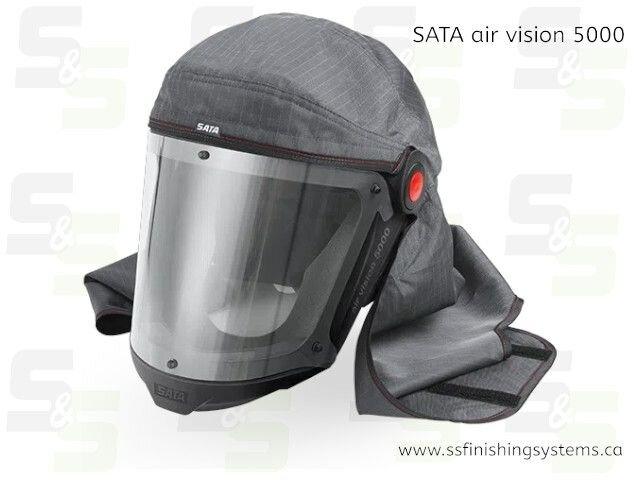

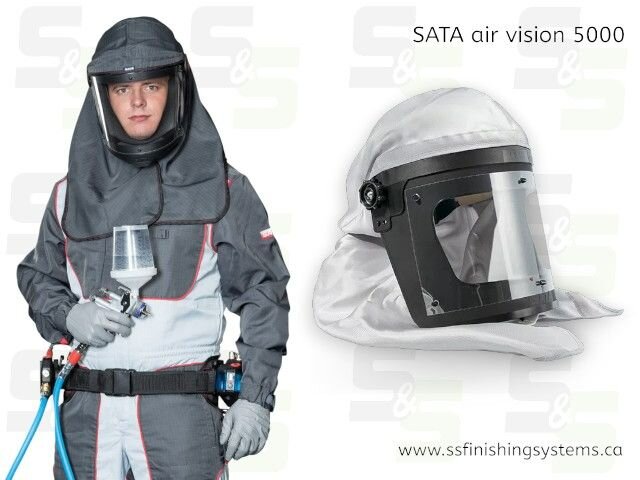

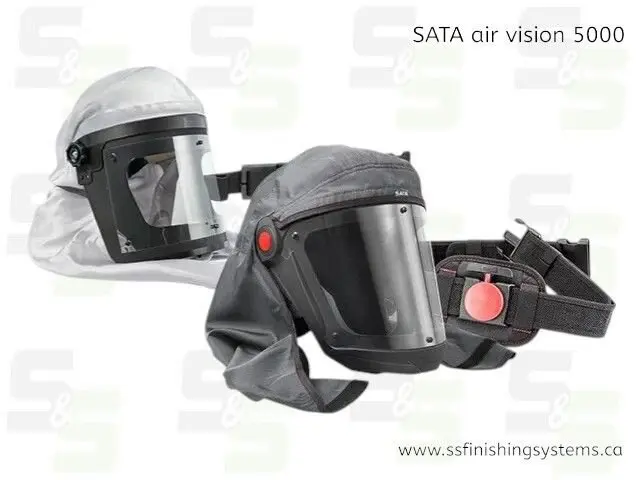

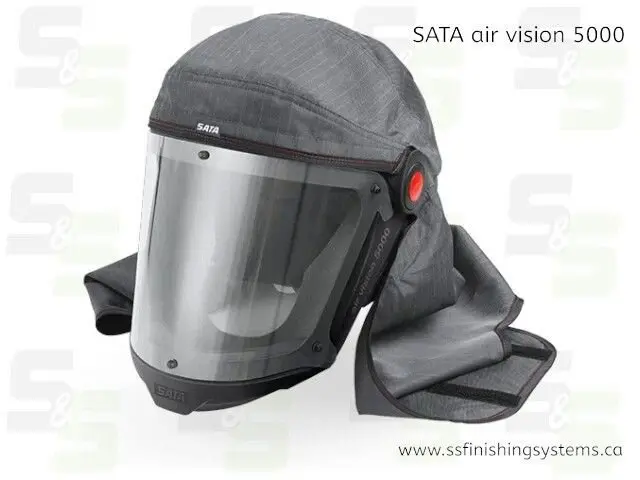

SATA air vision 5000

Breathing protection is health protection

Overview

The SATA air vision 5000 offers a completely redesigned way of supplied air respiratory protection. The respiratory hood not only ensures high breathing air quality but also a low noise level. The modern, ergonomic design fits with almost any head shape and can be individually adjusted in size, height and position.



Product Benefits

  • Absolute safety through external supply of clean air to the spray booth – up to 100 times TRC value and suitable for continuous use
  • No inhalation resistance, very comfortable breathing
  • Ergonomic design with individual adjustment options and one-hand operation of the visor
  • Little operating costs, quick pay-off of purchase costs
  • Soft-stream flow-optimised air distribution in the hood
  • Reduced sound level: 64 dB (like a conversation in 1m distance)
  • The SATA CCS Discs (Color Code System) allow to personalise hood, SATA air regulator and SATA air carbon regulator
  • Single solvent resistant tear off visors over an aperture in the front of the mask, ensuring 100% visibility and reduction in light reflections.

Technical Information
Packaging unit 1,0 Pieces
Net weight 0,001 - 2,600 kg
Max. operating pressure 8,6 - 10,0 bar
Required Minimum Volume Flow 150 - 170 Nl/min
Type of breathing protection Ambient air-independent breathing protection
Color Code System (CCS) ✓
Premium warranty capable ✓

* All information without guarantee - errors and changes reserved.
** All data refer to the entire product range and not to individual variants.

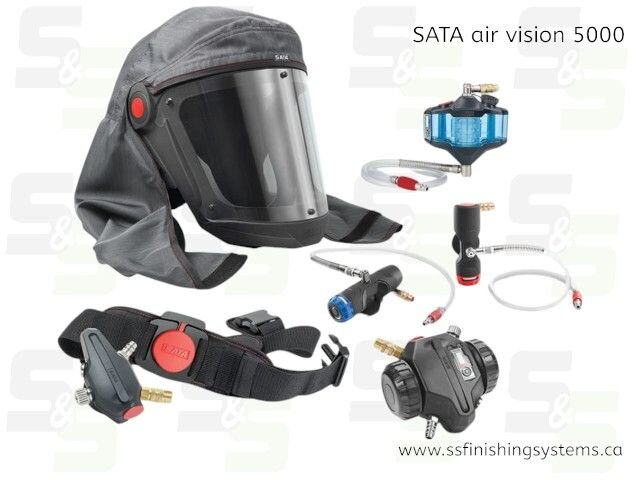

  1. The respirator hood is also part of these sets, which offer painters absolute safety
  2. SATA air vision 5000 set (without activated carbon adsorber): Hood, belt and air regulation unit for combination with 3-stage compressed air filters with integrated activated carbon stage
  3. SATA air vision 5000 carbon set (with activated carbon adsorber): Hood, belt and air regulation unit for combination with 2-stage compressed air filters without integrated activated carbon stage

Suitable areas of application

✔Car Refinish
✔Industrial Applications
✔Carpentry
✔Decorative Painting
✔Yacht and Boat Building



Downloads
Adobe Acrobat Portable Document LEAFLET-SATA-AIR-VISION-5000.pdf
